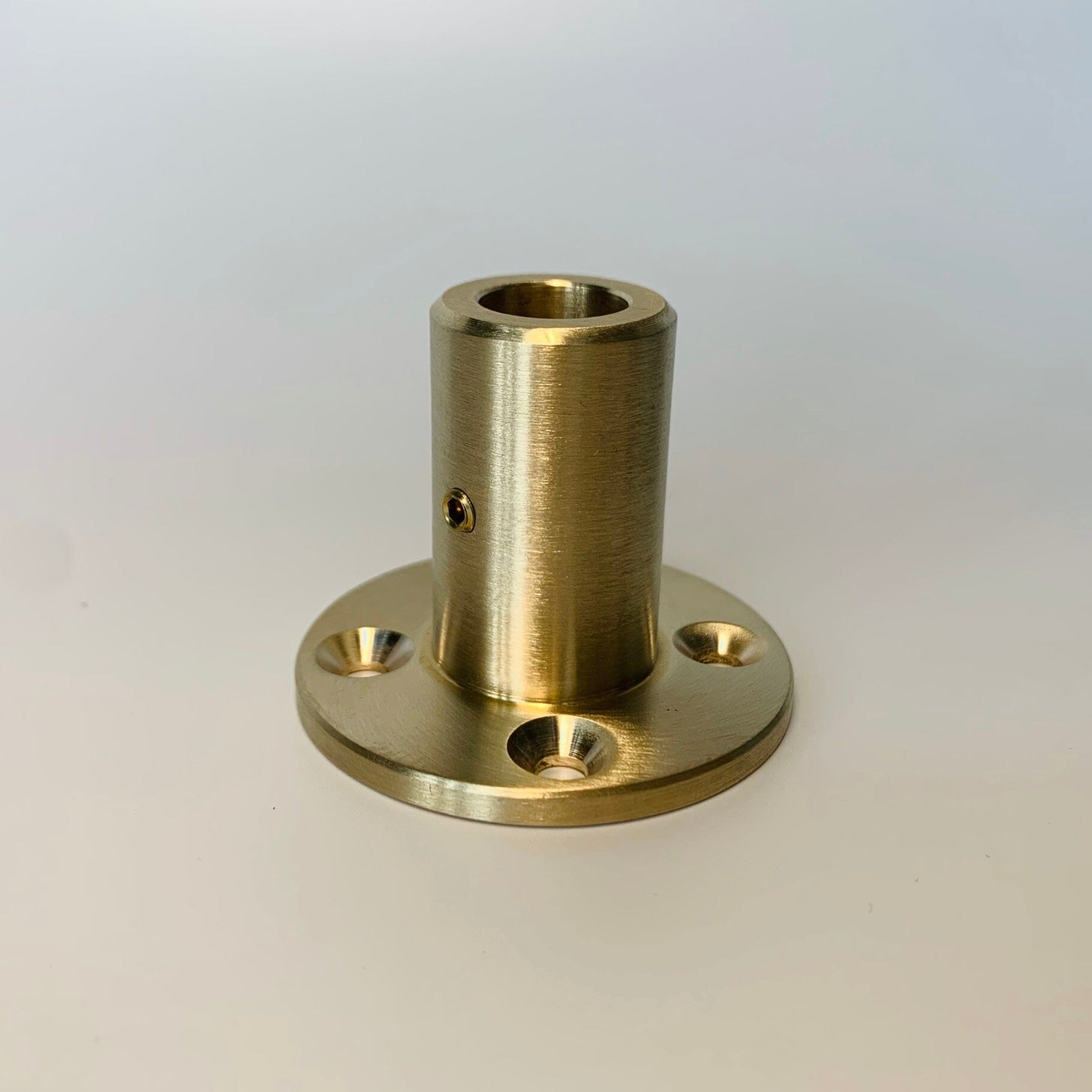

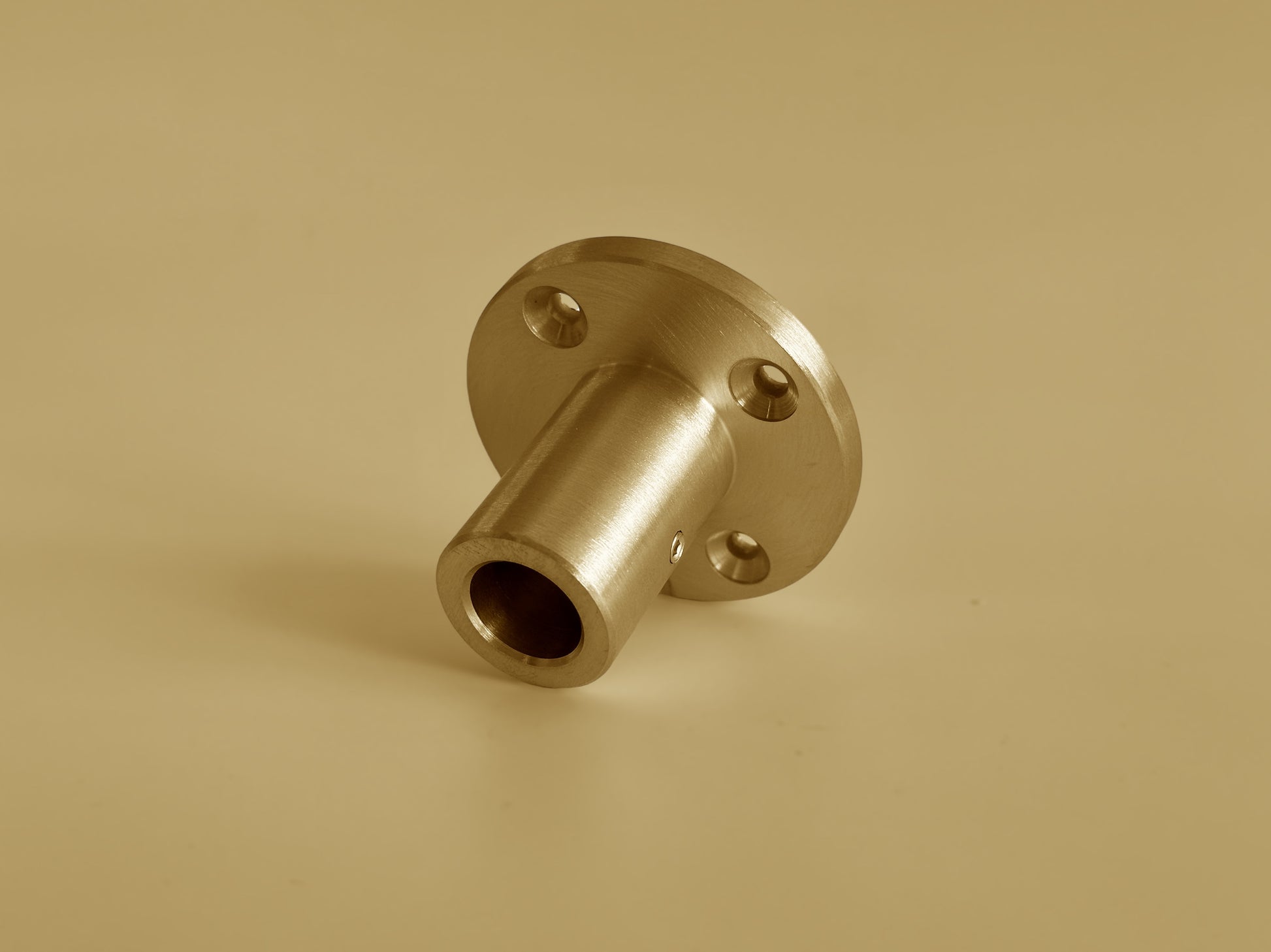

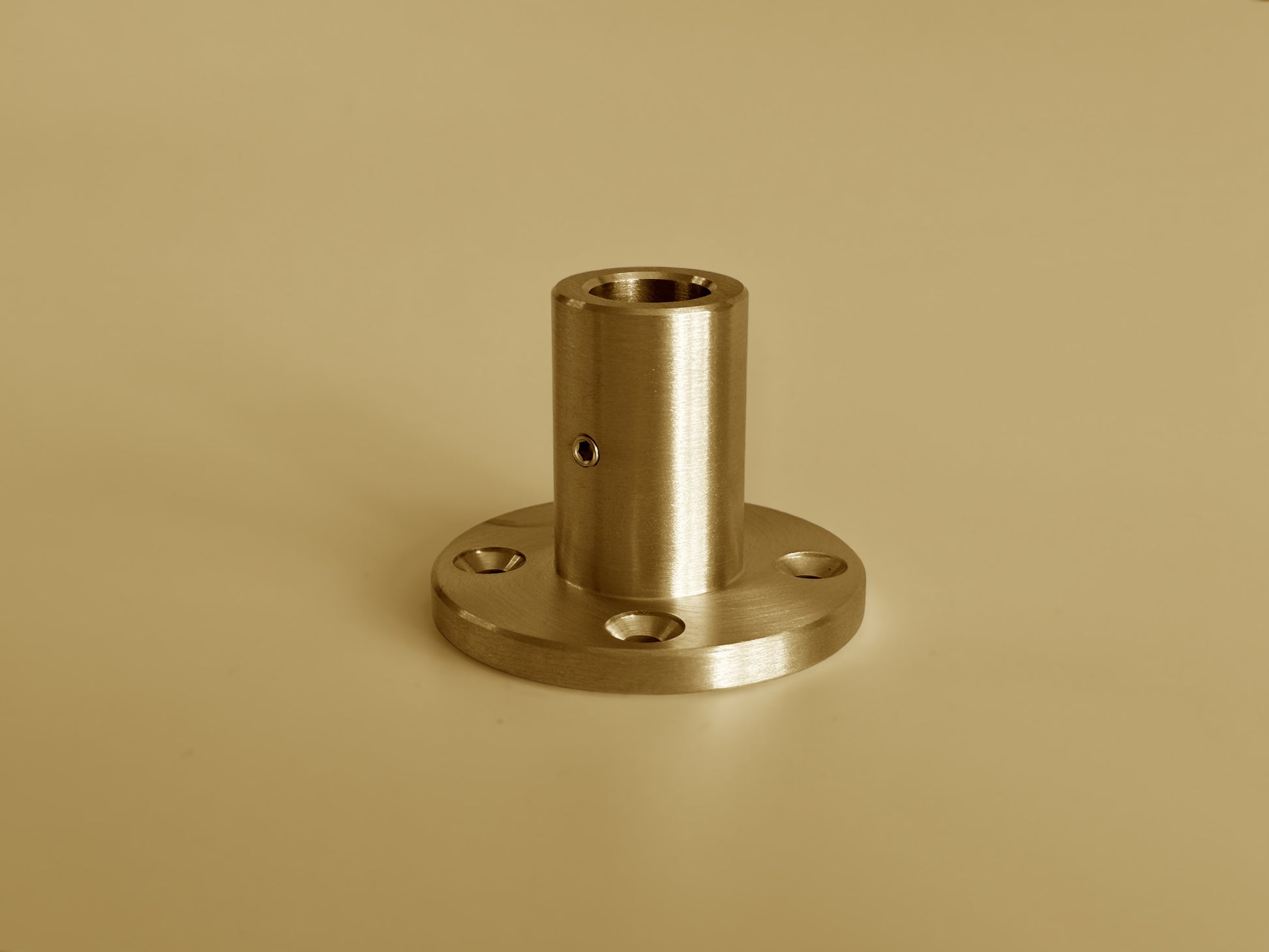

Type E – Brass Flange Mount for Pipe Shelving

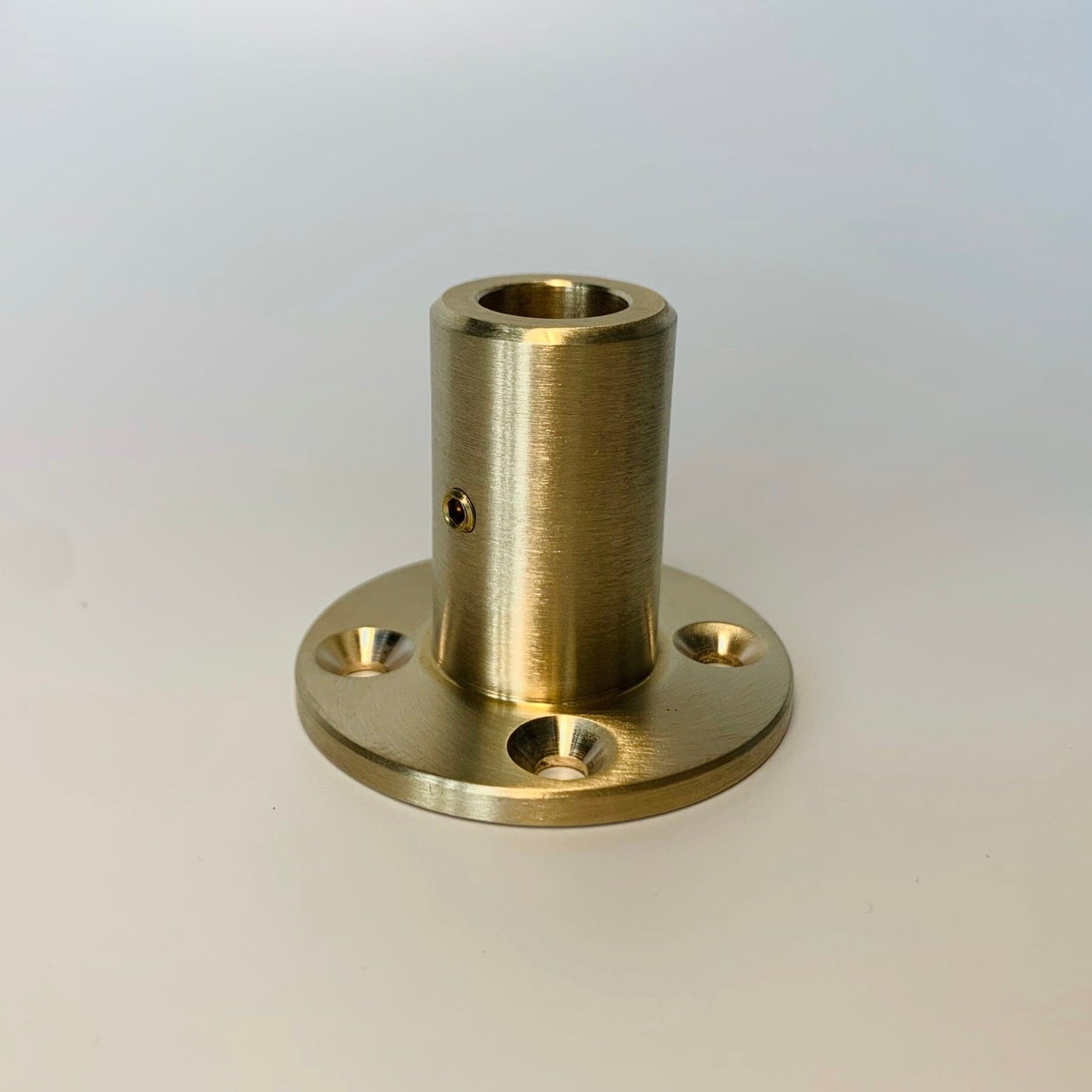

The Type E is a single-entry flange with four countersunk screw holes in the base plate. One pipe enters the fitting and stops inside. The base is screwed to a wall, ceiling, floor or countertop, creating a permanent anchor point for the pipe.

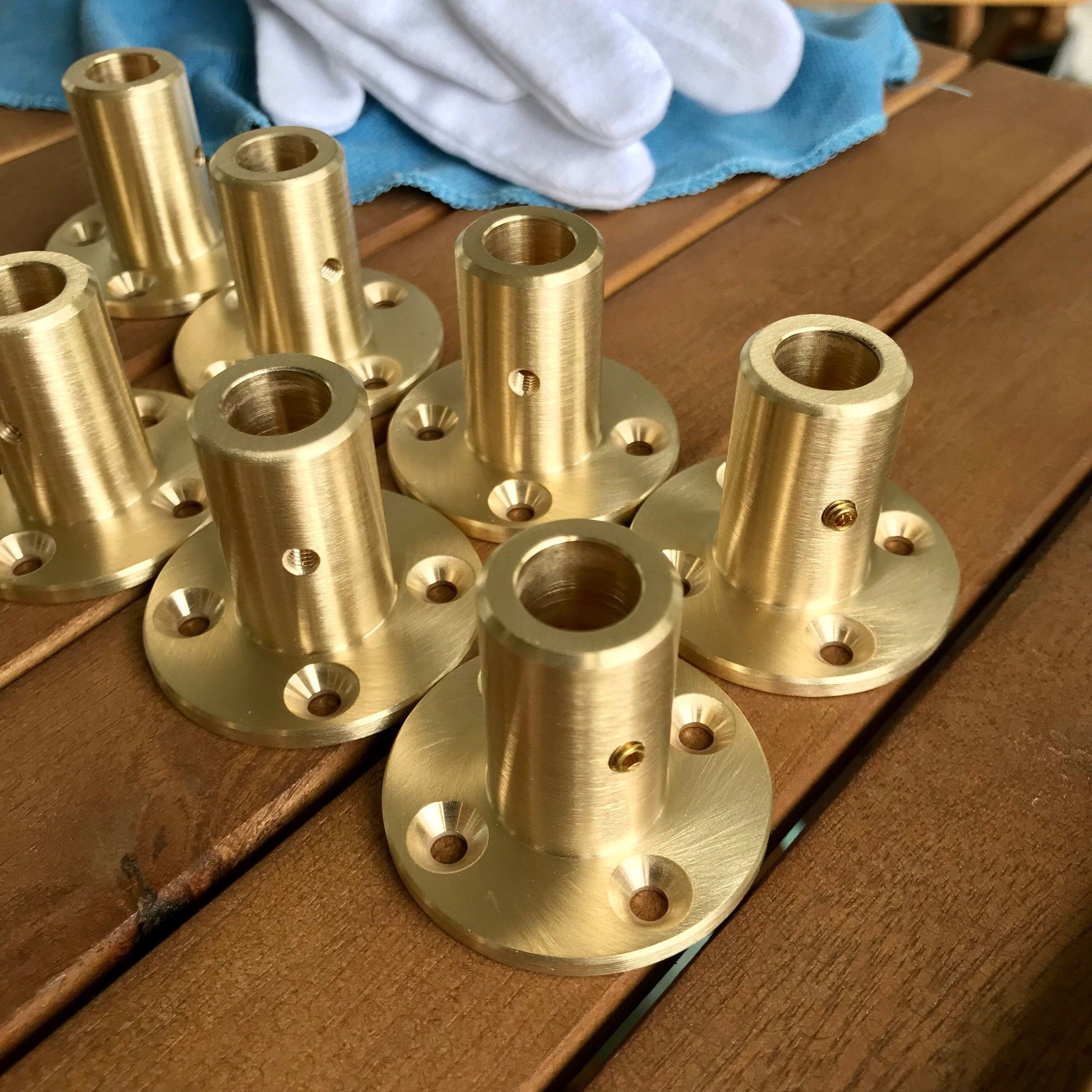

Precision CNC-machined from solid unlacquered brass, in a brushed (satin) or polished unlacquered finish.
Dimensions
| Pipe / rod | Base diameter | Overall height | Base thickness | Pipe insertion depth | Adds to pipe length |
|---|---|---|---|---|---|
| 15/32" (12 mm) | 2" (50 mm) | 1 3/8" (35 mm) | 3/16" (5 mm) | 1 3/16" (30 mm) | 3/16" (5 mm) |
| 5/8" (16 mm) | 2 3/8" (60 mm) | 1 9/16" (40 mm) | 3/16" (5 mm) | 1 3/8" (35 mm) | 3/16" (5 mm) |
| 1" (25 mm) | 2 3/4" (70 mm) | 1 7/16" (37 mm) | 9/32" (7 mm) | 1 5/16" (33 mm) | 5/32" (4 mm) |
The pipe never reaches the base plate — it stops at the insertion depth, so the fitting adds a small fixed amount to your pipe length. Example: a 36" pipe in a 5/8" fitting becomes 36" + 3/16" (5 mm).
What's Included
Four countersunk mounting screws and all set screws (short and long), in matching brass — included in the price.
Set Screws: Short vs Long
Every fitting comes with two kinds of set screws, in the same brass finish as the fitting:
- Short set screw — for undrilled pipe. It tightens against the outside of the pipe and clamps it in place. No drilling needed.
- Long set screw — for drilled pipe. The pipe is drilled through one wall only. The screw passes through the fitting and the drilled wall and presses against the opposite inside wall of the pipe, locking the pipe against rotation and pull-out.
We can pre-drill your pipes if you share the hole positions — or you can drill them yourself. We drill one size larger than the screw for tolerance: a 6 mm (≈ 15/64") bit for M5 set screws and a 7 mm (≈ 9/32") bit for M6 set screws. Exact hole positions for a complete unit are shown on the technical drawing you can download from our configurator.
| Pipe / rod | Mounting screws (included) | Short set screw (undrilled pipe) | Long set screw (drilled pipe) | Hex key | Pipe drill size for long set screw |
|---|---|---|---|---|---|
| 15/32" | 4 × Ø5 mm (≈ #10) × 2 3/8" (60 mm) | M5 × 5 mm | M5 × 10 mm | 2.5 mm | 6 mm (≈ 15/64") |
| 5/8" | 4 × Ø5 mm (≈ #10) × 2 3/4" (70 mm) | M5 × 5 mm | M5 × 19 mm | 2.5 mm | 6 mm (≈ 15/64") |
| 1" | 4 × Ø6 mm (≈ #12) × 2 3/4" (70 mm) | M6 × 6 mm | M6 × 30 mm | 3 mm | 7 mm (≈ 9/32") |
How It Works

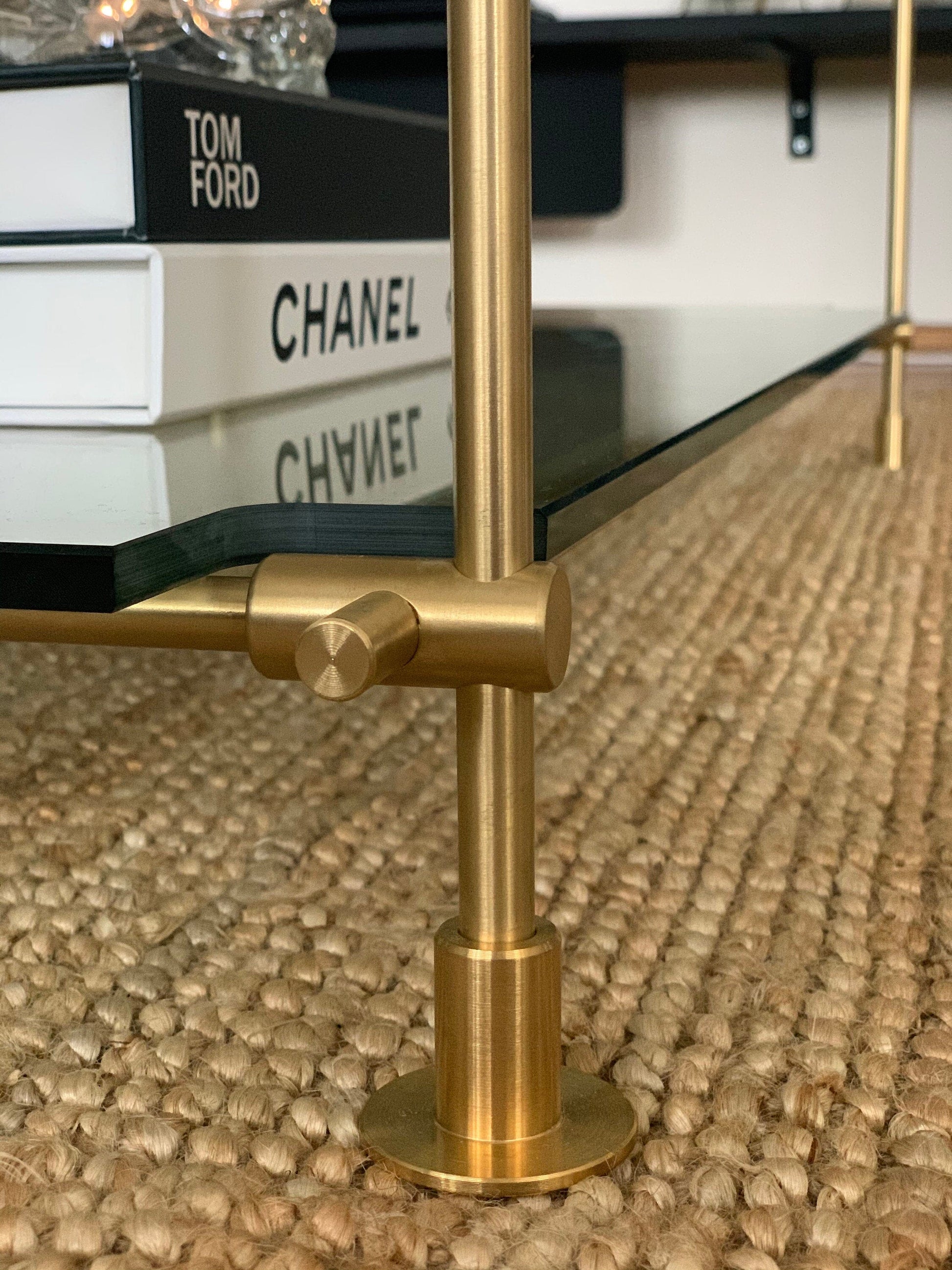

The pipe enters the fitting and is secured with a set screw. The base is fastened through its four countersunk holes into the structure behind the surface — a rigid, permanent connection used as the main anchor in wall-, ceiling- and floor-mounted shelving.
Ceiling & Wall Anchoring
The included screws are wood screws for timber joists and studs. For concrete, masonry, steel framing or drywall, use the appropriate anchor for your structure — a contractor can advise. Always anchor into structure, not drywall alone.
Type E vs Type D
Type E — four countersunk screw holes; screw-fixed to a wall, ceiling, floor or countertop.
Type D — same body with no screw holes; bonded with epoxy on stone countertops you don't want to drill.
Which Pipe Diameter Should I Choose?
15/32" (12 mm) — Slimmest profile. Refined, delicate appearance for residential kitchens, boutique retail and spaces where visual lightness matters.
5/8" (16 mm) — Most popular. Balances visual weight with structural strength — residential shelving, bar backs, hospitality, retail.
1" (25 mm) — Most substantial. Bold, architectural presence for large installations or where the pipe system is a deliberate visual feature.
The Brass Flange Family
Same pipe diameters, same finishes — choose by how the fitting mounts.
Get a Full Technical Drawing (PDF)
Planning a complete shelving unit? Design it in our shelf configurator and download a dimensioned PDF technical drawing — every fitting, pipe length, overall size and set screw position, ready to share with your contractor or millworker. See all fitting sizes side by side on our Flange Fitting Dimensions & Specs page.
Frequently Asked Questions
Are mounting screws included?
Yes. Every Type E ships with four countersunk mounting screws and all set screws, in matching brass, included in the price. Screw sizes: 15/32" pipe: Ø5 mm (≈ #10) × 2 3/8" (60 mm); 5/8" pipe: Ø5 mm (≈ #10) × 2 3/4" (70 mm); 1" pipe: Ø6 mm (≈ #12) × 2 3/4" (70 mm).
How much length does the Type E add to my pipe?
The pipe stops before the base plate. 15/32": adds 3/16" (5 mm); 5/8": adds 3/16" (5 mm); 1": adds 5/32" (4 mm).
What is the base diameter of the Type E?
15/32" pipe: 2" (50 mm); 5/8" pipe: 2 3/8" (60 mm); 1" pipe: 2 3/4" (70 mm).
What's the difference between the short and long set screw?
The short set screw clamps against undrilled pipe. The long set screw goes through a hole drilled in one wall of the pipe and presses against the opposite inside wall, locking the pipe against rotation and pull-out. Both are included.
Can you drill my pipes?
Yes — send us the hole positions and we'll drill them, or drill them yourself: 6 mm (≈ 15/64") bit for M5 set screws, 7 mm (≈ 9/32") for M6. Drill one wall of the pipe only.
Where can I get exact dimensions for my whole unit?
Design your unit in our configurator and download the PDF technical drawing — it shows every fitting, pipe length and dimension.

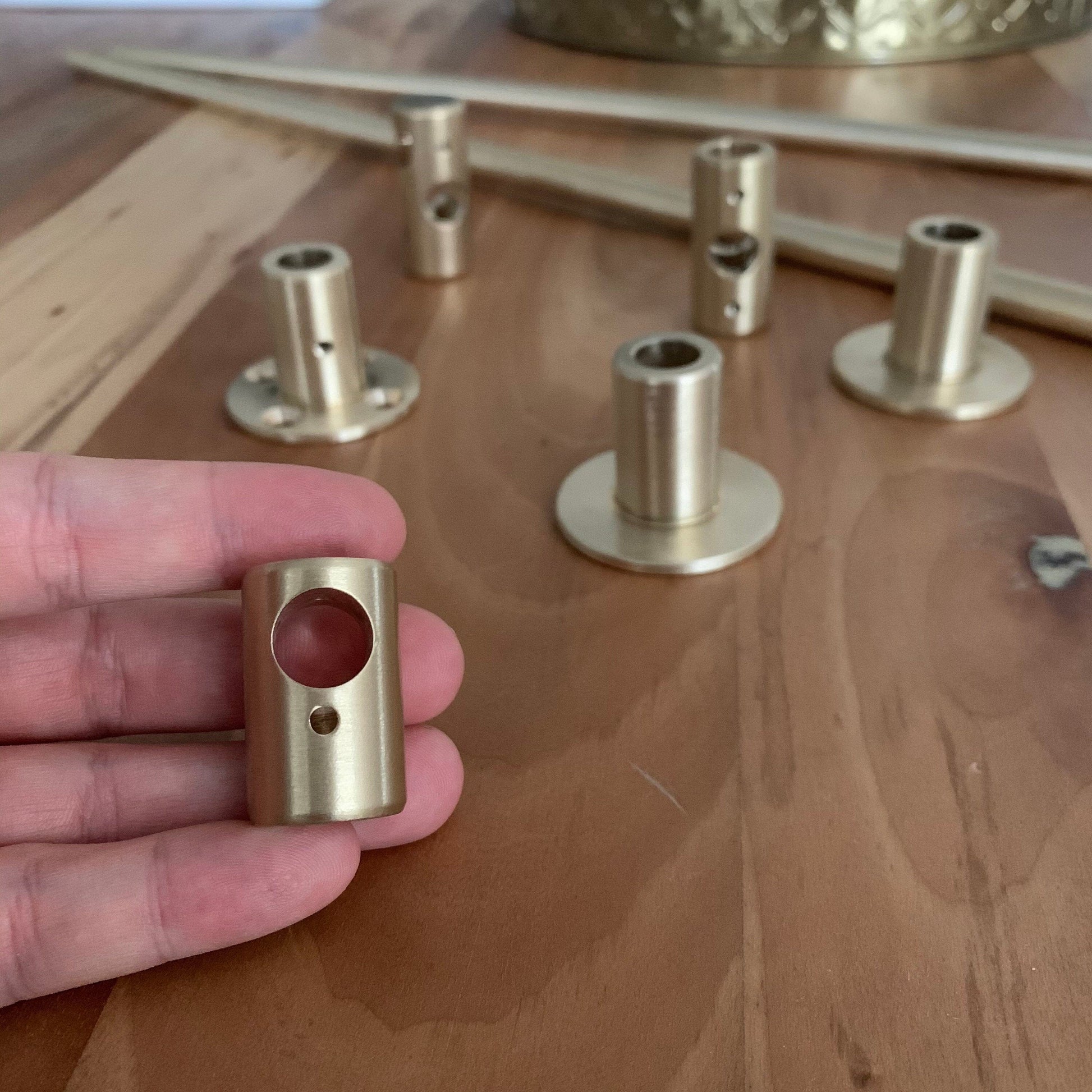

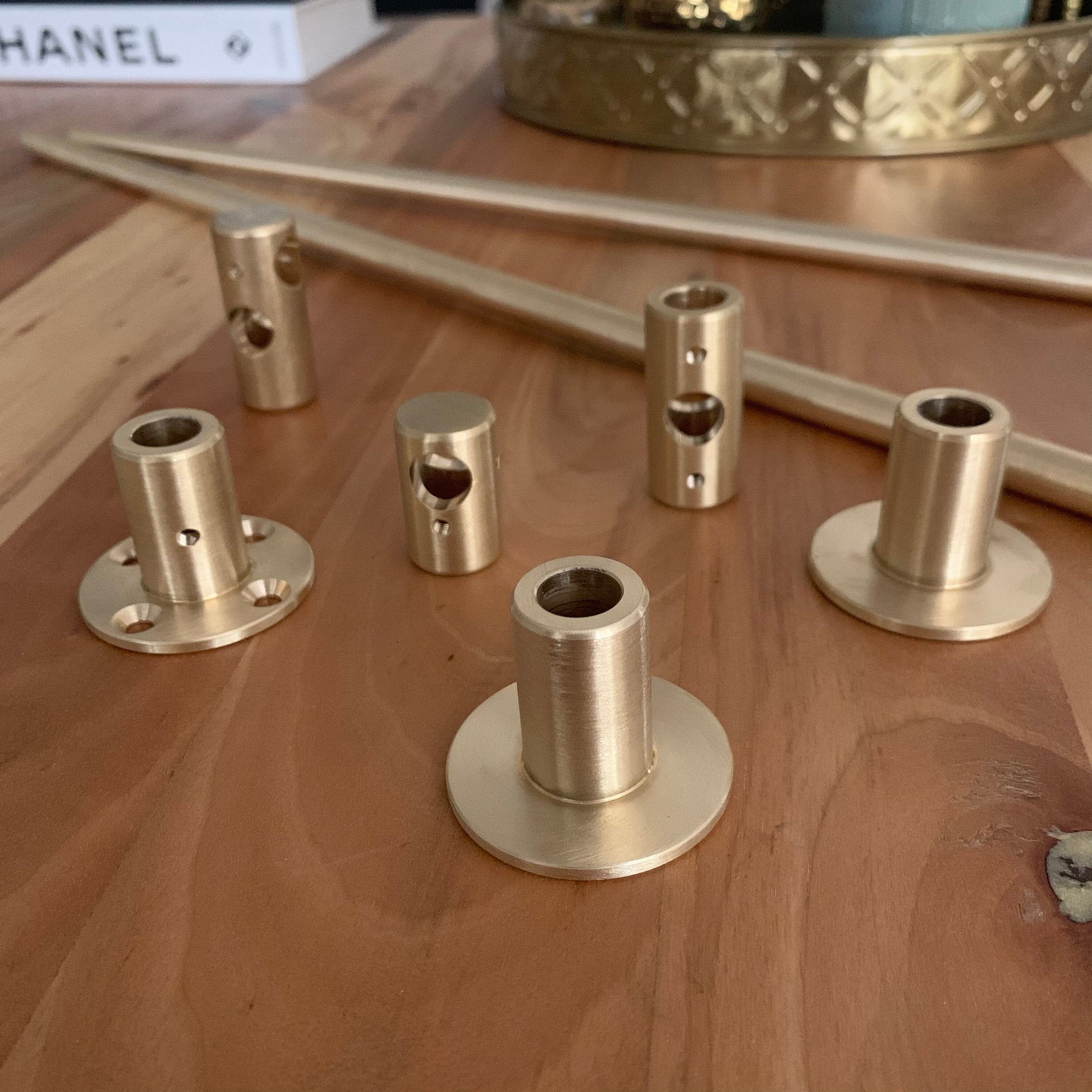

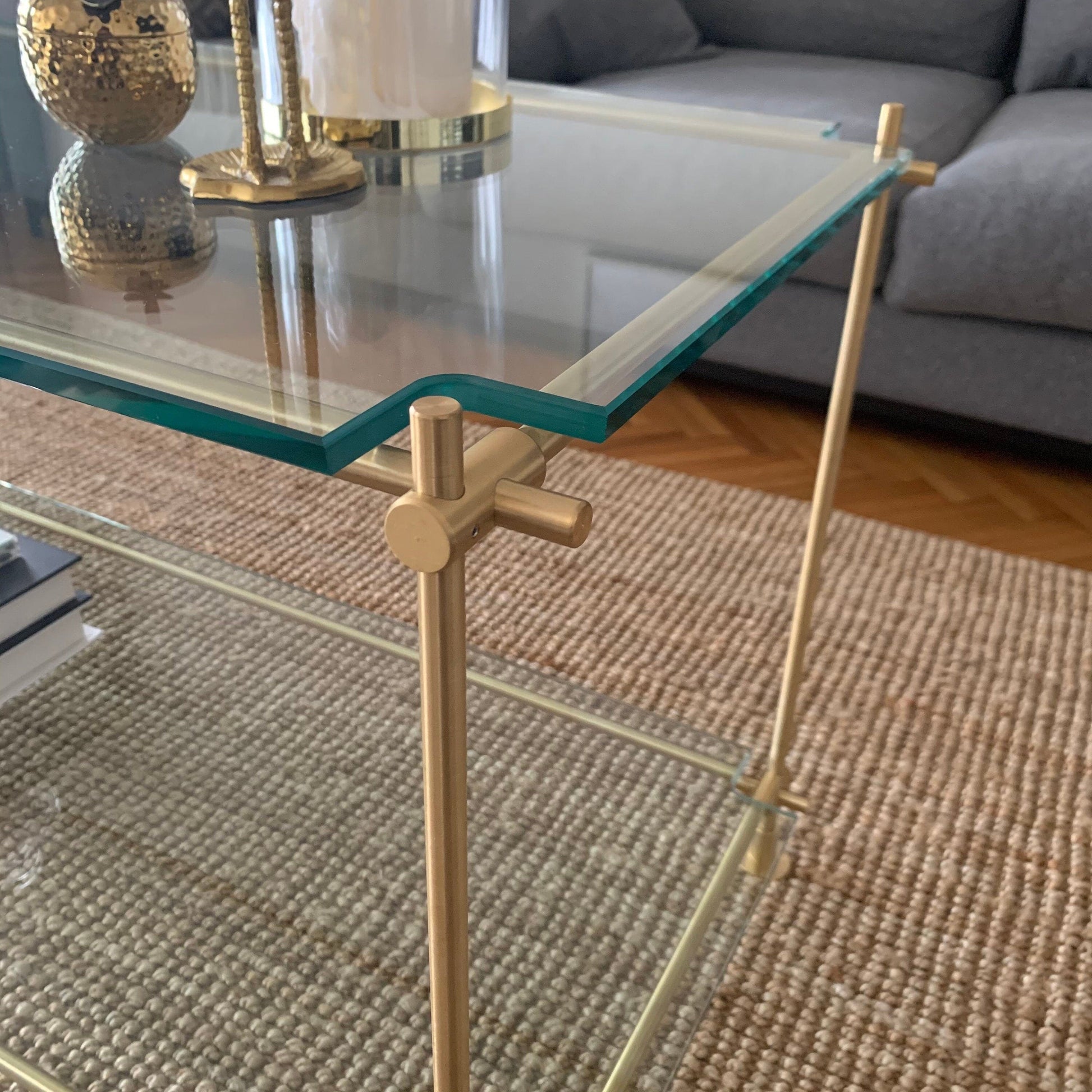

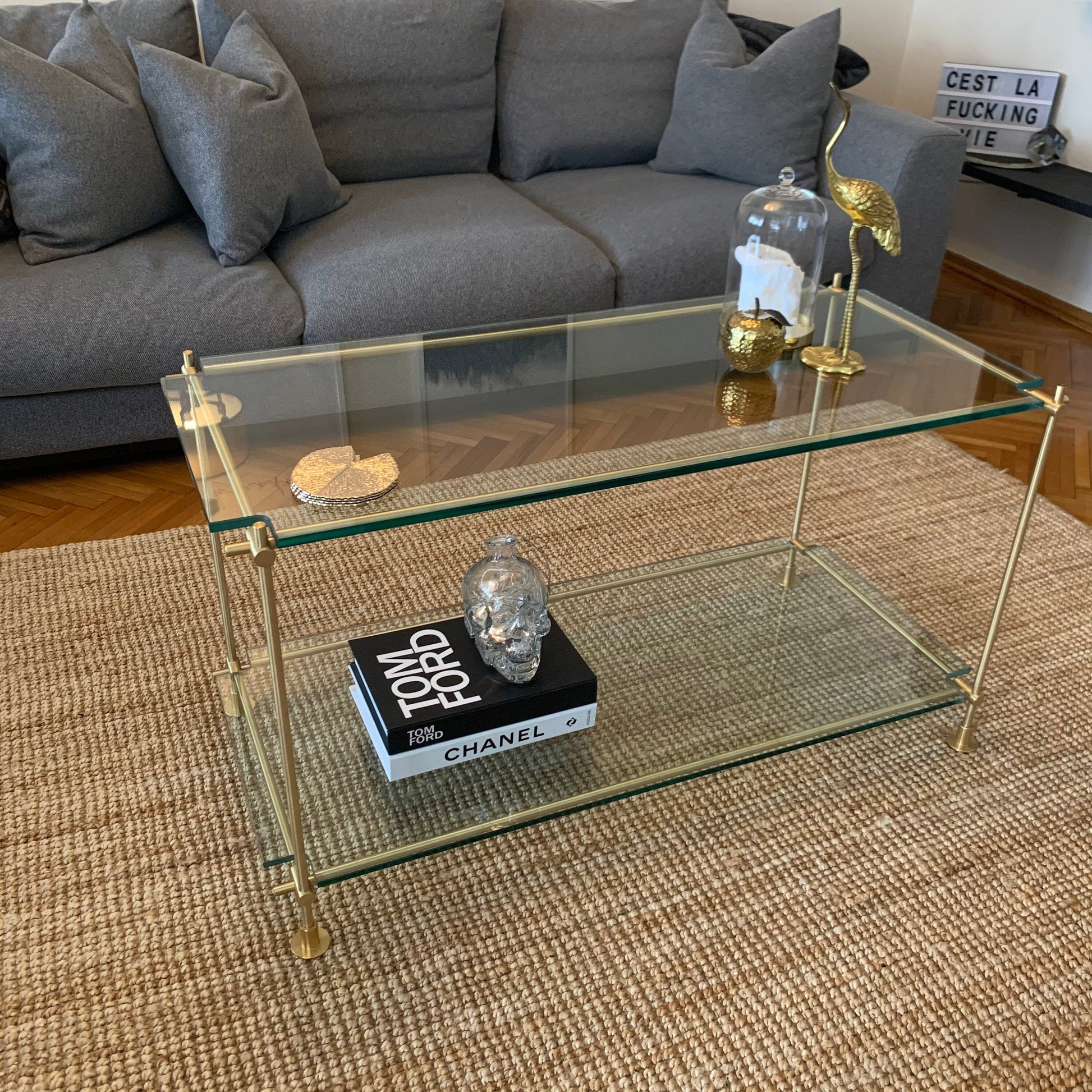

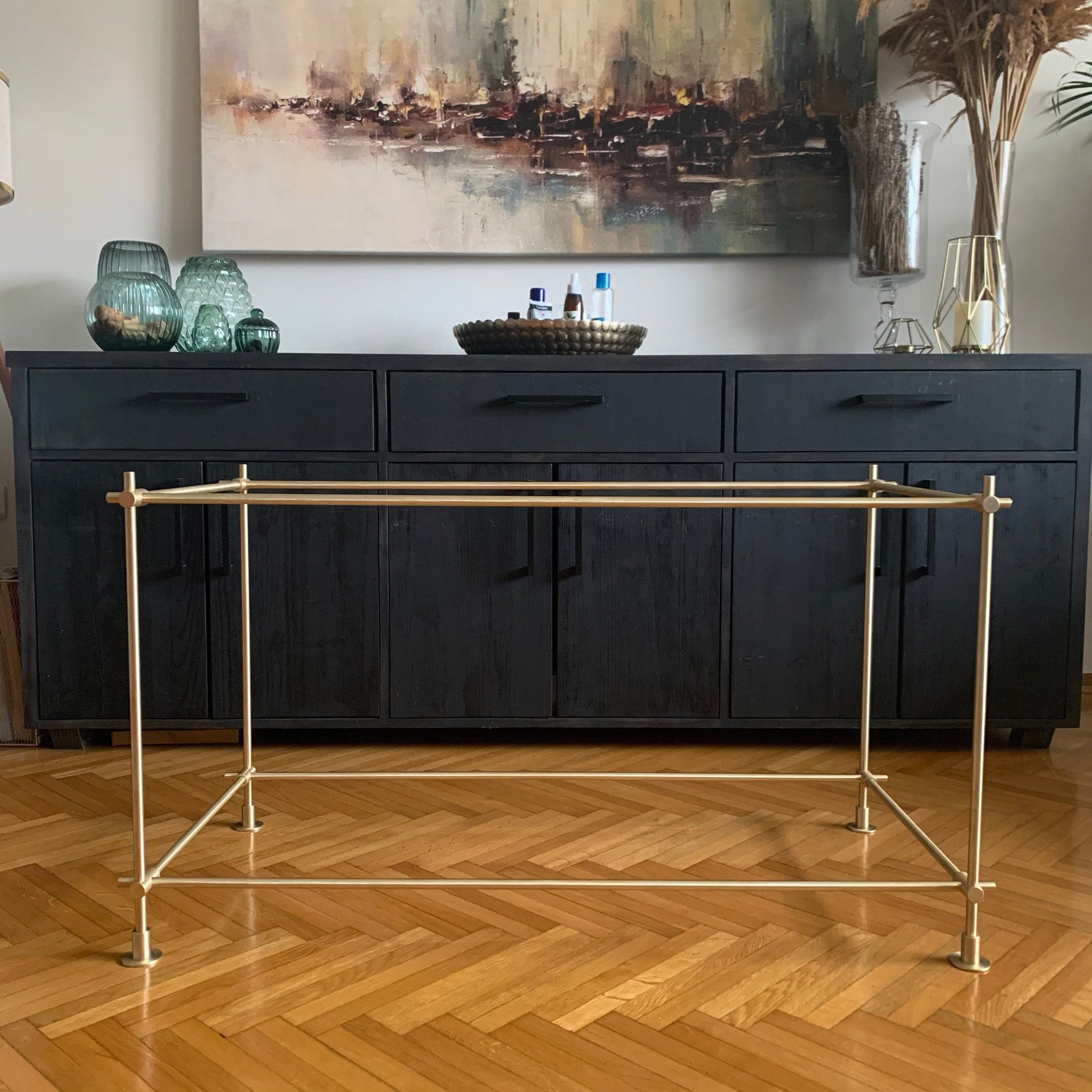

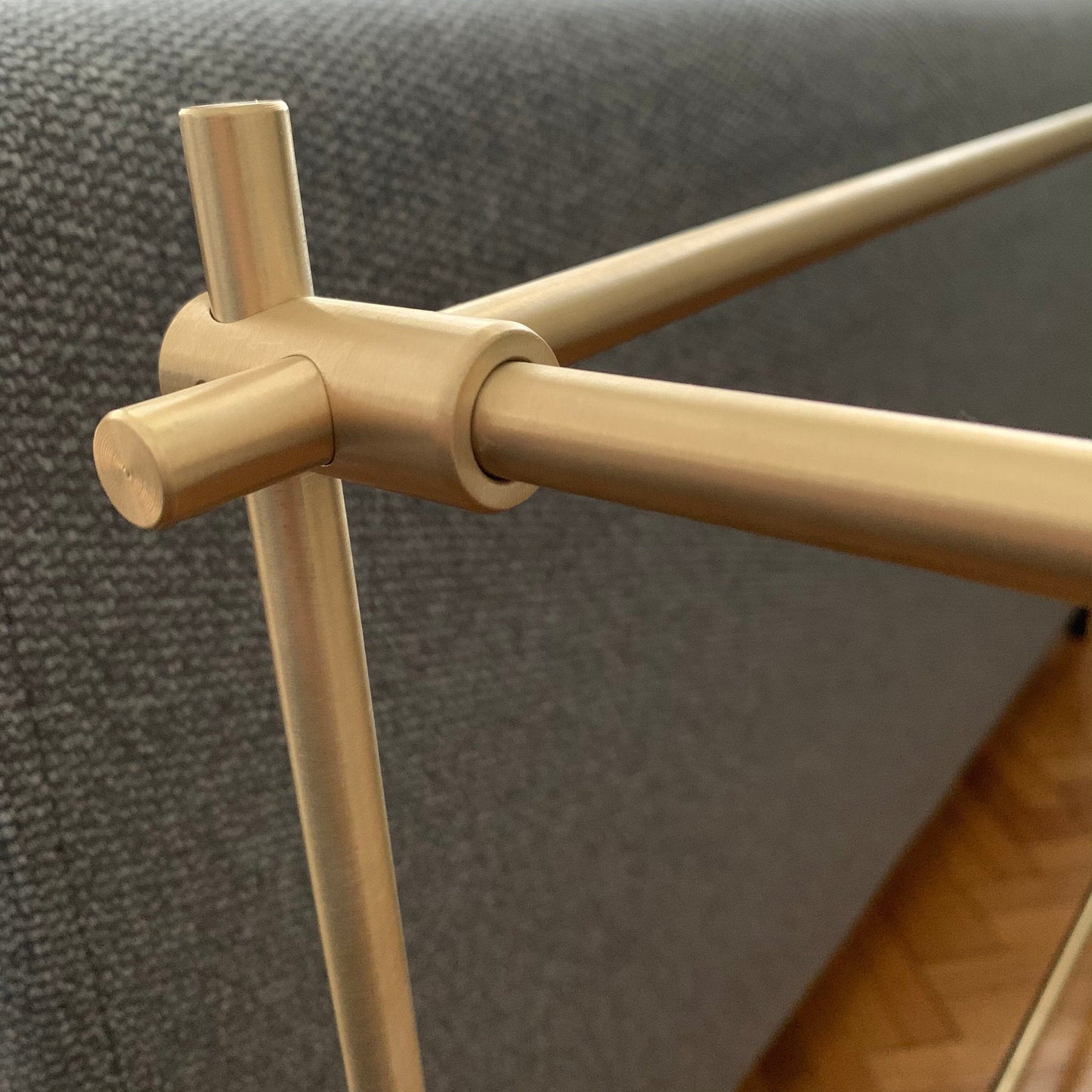

Compatible with all BrassShelf fittings of the same pipe diameter — mix Type A, B, C, D, E and F freely within one system.
